TECS TC-3050 is a high-capability 3-axis gimbal system designed for advanced surveillance and reconnaissance tasks. Here's a summary of its key features:
-
3-Axis Gimbal Stability: The gimbal is built on FOC (Field-Oriented Control) technology, ensuring stable and precise control for clear video capture.
-
30x Optical Zoom Camera: This camera offers 1080P resolution at 30 frames per second (fps), providing full HD video streaming. The high zoom capability allows for detailed surveillance even from a considerable distance.
-
Extended Zoom Capability: The camera can zoom up to 360x, enabling the capture of fine details at a distance.
-
Thermal Camera: With a resolution of 640x480, the thermal camera is designed for detecting and monitoring targets in low light or nighttime conditions, which is crucial for covert operations or search and rescue missions.
-
Laser Rangefinder: The high-precision laser rangefinder can accurately measure the distance and GPS location of objects up to 3000 meters away, providing critical data for mission planning and execution.
-
Automatic Data Display: The gimbal system automatically displays the GPS location and distance information on the screen, facilitating real-time monitoring and decision-making.
-
Versatile Applications: Suitable for a range of applications, including law enforcement, military operations, search and rescue, wildlife conservation, and infrastructure inspection.
-
Robust Design: The gimbal is designed to be robust, capable of withstanding various environmental conditions to ensure reliable performance in the field.
The Eagle Eye-30IE-M50 gimbal system represents a significant advancement in surveillance technology, offering a comprehensive set of features that cater to the needs of modern surveillance and reconnaissance operations.
High-performance 3-axis gimbal with 360-degree rotation
Powered by a dedicated sensor, the high-performance 3-axis drone gimbal has a control accuracy of ±0.02°, giving you crystal clear video footage.

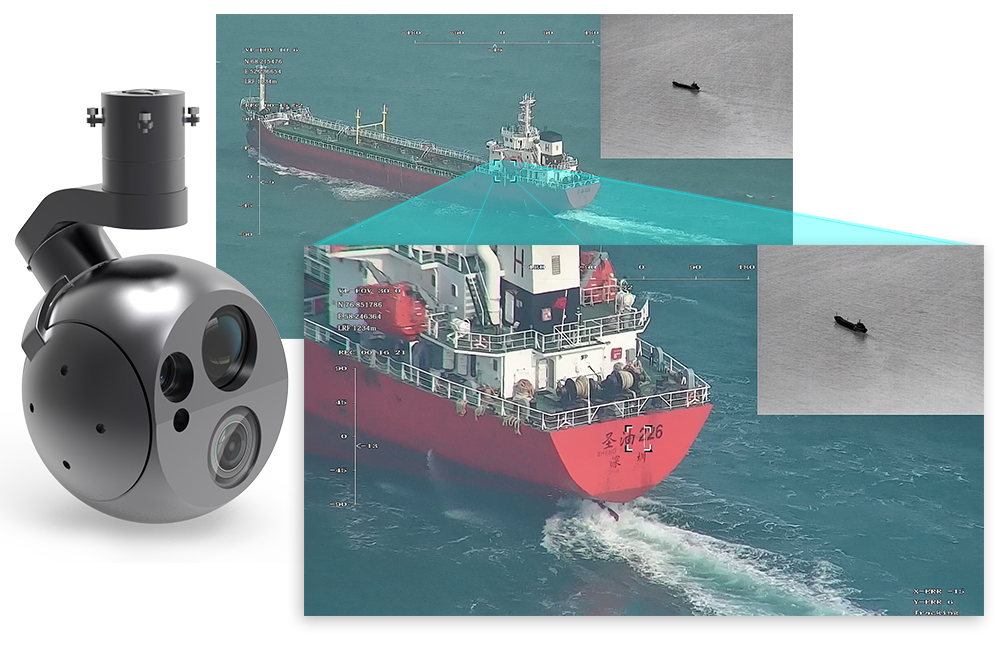

Powerful zoom capability
30x optical zoom, 12x digital zoom, 1080P 30fps video streaming.
High-resolution thermal imager
640*480 resolution, 25Hz frequency, 3 color palettes, 4x digital zoom.

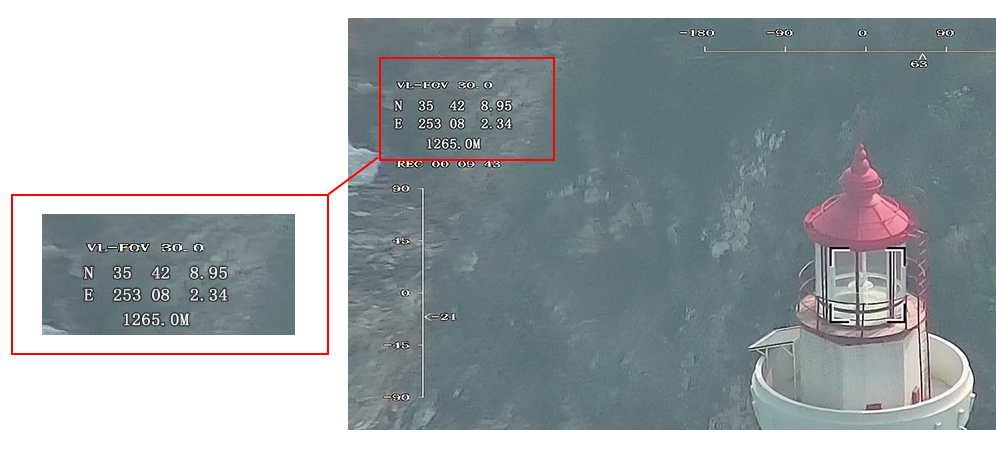

Target GPS coordinate
The advanced location calculating algorithm is used to calculate the target's distance within 3000 meters and accurately analyze the longitude and latitude of the target. This feature is essential for drone patrol and inspection: suspicious target coordinates can be easily obtained and shared with the supervisor. Also, the drone can keep watching the target based on the coordinates.
Auto object tracking
Based on cross-correlation, tracking and object miss recapturing algorithm, Eagle Eye-30IE-M 30x EO/IR triple sensor zoom camera can realize continuously stable object tracking on both daylight zoom camera and the thermal imager.
| Gimbal system | |
| Input voltage | 12V |
| Video output | 1080P/720P 30fps Ethernet |
| Video recorded | 1080P/720P 30fps MP4 |
| Photo | JPG(1920*1080) |
| Rotate range | Pitch: ±90° Roll: ±45° Yaw: Unlimited |
| Angle amount of jitter | Pitch and roll: ±0.02° Yaw: ±0.02° |
| Control interface | S.Bus, UART and Ethernet |
| Working Current | Static current: 1.0A(@12V) Dynamic current: 3.3A(@12V) |
| Local storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Mechanical feature | |
| Total weight (gimbal and camera) | 1,216g |
| Working temperature | -25° ~ +60° |
| 30x zoom camera | |
| Sensor | 1/2.8 inch 2.13MP CMOS SENSOR |
| Focal length | 30x optical focal zoom, 4.3-129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| FOV | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| 720p mode: 63.7°(wide end) ~ 2.3°(tele end) | |
| SD: 47.8°(wide end) ~ 1.7°(tele end) | |
| Sync system | Internal |
| S/N ratio | More than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| White balance | Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| Thermal imager | |
| Lens | 35mm |
| Working system | Un-cooled long wave (8μm～14μm) |
| Detector pixels | 640×480 |
| Pixel size | 17μm |
| Focusing | Athermalizing |
| FOV | Horizontal: 17.7° |
| Vertical: 13.3° | |
| Diagonal: 22.0° | |
| Detective Distance (Man: 1.8x0.5m) | 1029meters |
| Recognize Distance (Man: 1.8x0.5m) | 257 meters |
| Verified Distance (Man: 1.8x0.5m) | 129 meters |
| Detective Distance (Car: 4.2x1.8m) | 3157 meters |
| Recognize Distance (Car: 4.2x1.8m) | 789 meters |
| Verified Distance (Car: 4.2x1.8m) | 395 meters |
| Emissivity correction | Emissivity 0.01~1 adjustable |
| NETD | ≤50mK(F1.0@25℃) |
| MRTD | ≤650mK(@Characteristic frequency） |
| Image enhancement | Automatically adjusts image brightness and contrast |
| Color palette | White hot, black hot, pseudo color |
| Automatic non-uniformity | Yes(with or without shutter) |
| correctionfunction | |
| Digital zoom | 1x, 2x, 3x, and 4x |
| Time synchronization function | Yes |
| 3000m laser range-finder | |
| Measuring distance (Visibility no less than 5km, diffuse reflectance over 0.3, humidity less than 80%) |
Over 3000m (car: 2.3m×2.3m) |
| Over 1500m (human: 1.75m×0.75m) | |
| Over 5000m (building) | |
| Laser Wavelengths | 1535nm ± 5nm |
| Laser divergence angle | Less than0.5mrad |
| Continuous measuring frequency | 1~10Hz adjustable |
| Ranging accuracy | No more than ±2m (RMS) |
| Accuracy rate | Over 98% |
| Minimum range | No more than 20m |
| Ranging resolution | No more than 30m (multiple targets) |
| Operating temperature | -40℃ ~ +65℃ |
| Storage temperature | -55℃ ~ +70℃ |
