TECS TC-20 30x Drone Zoom Camera With Thermal Imager And Object Tracking


Sku:  TC-20
Weight:  1.07 kg
Add to Wishlist

TC-20  is a sophisticated drone camera system tailored for various applications such as inspection, surveillance, search, and rescue. Here's an overview of its capabilities:

  1. High-Magnification Zoom: Equipped with a SONY 30x optical zoom camera, the Eagle Eye-30IE Pro offers the flexibility to capture clear images from a significant distance.

  2. Full HD Video Streaming: The camera provides 1080P resolution video streaming at 30 frames per second (fps), ensuring high-quality video feed for real-time monitoring.

  3. Extended Zoom Capability: With up to 360x zoom capability, the camera system allows for the capture of minute details, even when the drone is operating at a considerable distance from the target.

  4. Thermal Imager Integration: The inclusion of a thermal camera enhances the system's ability to detect and monitor targets in challenging conditions such as nighttime or low visibility environments.

  5. Versatile Applications: The Eagle Eye-30IE Pro is designed to be highly versatile, suitable for a range of tasks including but not limited to infrastructure inspection, wildlife monitoring, search and rescue operations, and security surveillance.

  6. Enhanced Surveillance: The thermal imaging technology is particularly beneficial for surveillance missions, where it can provide critical information that may not be visible to the naked eye or conventional cameras.

  7. Mission-Critical Information: During operations like inspecting hard-to-reach areas or monitoring objects of interest, the thermal camera can offer invaluable insights that can be the difference between success and failure of a mission.

  8. Search and Rescue Enhancement: In emergency situations, the thermal camera can locate heat signatures of individuals or animals, which is crucial for search and rescue efforts, especially in conditions where visibility is poor.

TIt represents a state-of-the-art solution for drone-based imaging, combining high-resolution optical zoom with the penetrating capabilities of thermal imaging to provide a comprehensive surveillance and inspection tool.

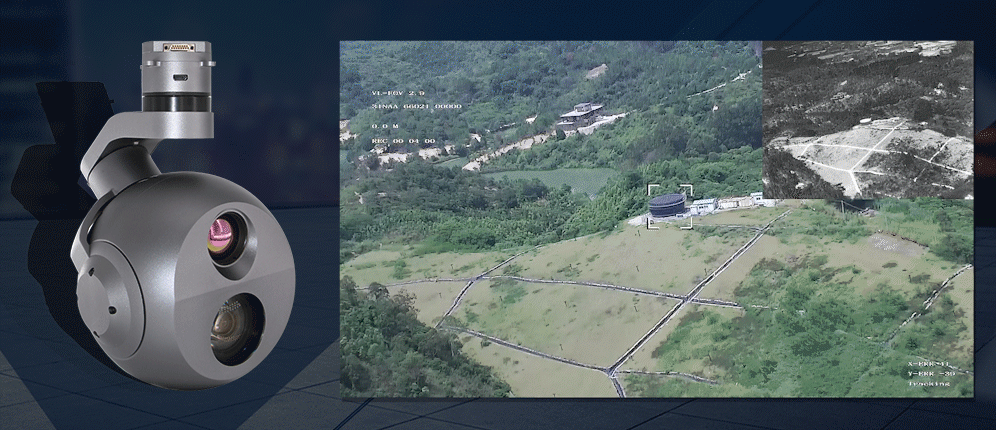

Powerful zoom capability
30x optical zoom, 12x digital zoom, 1080P 30fps video streaming.

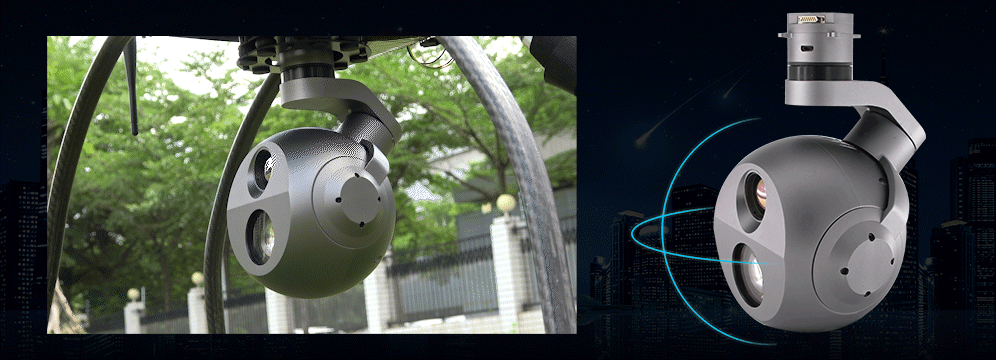

High-precise 3-axis gimbal with 360-degree rotation
Powered by a dedicated sensor, the high-performance 3-axis gimbal has a control accuracy of ±0.02°, giving you crystal clear video footage.

High-resolution thermal imager
640*480 resolution, 25Hz frequency, 3 color palettes, 4x digital zoom.

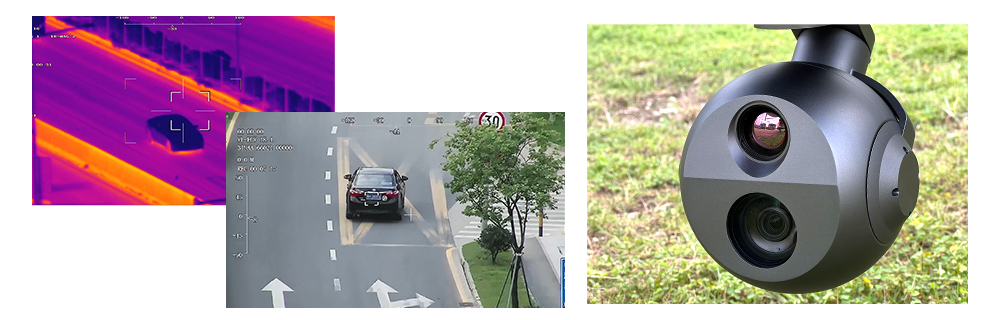

Auto object tracking
Based on cross-correlation, tracking and object miss recapturing algorithm, Eagle Eye-30IE Pro 30x EO/IR dual sensor zoom camera can realize continuously stable on both daylight zoom camera and the thermal imager.

Simple gimbal control
The 3-axis EO/IR drone gimbal supports S.bus, TTL serial port, and ethernet. With the help of gimbal control is simple and easy.

Born for multiple flight platforms
The streamlined aerodynamic design of the gimbal can significantly reduce air drag during the flight, making it a perfect fit for multicopter and VTOL fixed-wing flight platforms.



MAVLINK compatible
Eagle Eye-30IE Pro drone gimbal is compatible with drones powered by PX4 and Ardupilot, making integration relatively convenient.

Dimension and weight

Radio
Frequency 2401.5-2481.5MHz, 1427.9-1447.9MHz, 806-826MHz
Modulation OFDM & MCS
RF power up to 25dBm / 0.32W
Bandwidth 1.4MHz / 3MHz / 5MHz /10MHz /20MHz (adjustable)
Encryption AES128
Data rate Max 30Mbps
Latency Ethernet transmission ≤ 150ms, UART≤ 20ms
Range 15km
Power
Air unit 2.7W, 5-24V DC
Ground unit 3.1W, 5-24V DC
Size And Weight
Size (air unit) 85 x 52 x 18 mm
Size (ground unit) 118 x 64 x 37 mm
Weight (air unit) 194g (2 antennas are included)
205g (2 antennas are included)
Connectivity
Air unit 2 x ETH, 1 x UART, 2 x SMA, 1 x Power Input
Ground unit 1 x USB2.0, 2 x SMA, 1 x Power Input14μm)
Antenna
Air unit 2 x SMA 2dBi
Ground unit 2 x SMA 5dBi 14μm)
Environment
Storage temperature -40℃~+85℃
Working temperature -20℃~+75℃
